Acrel ADL200 Single Phase Din Rail Meter Voltage And Current Meter Modbus Din Rail Single Phase Energy Meter Data Logger

Name: Acrel ADL200 Single Phase Din Rail Meter Voltage And Current Meter Modbus Din Rail Single Phase Energy Meter Data Logger
Brand: Acrel
Price: 1 USD

Brand Name : Acrel

Model Number : ADL200

Certification : CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T

Supply Ability : 5000pc

Delivery Time : 2-3 work days

Packaging Details : carton

Rated current : 10(80)A

Certificate : CE ROHS MID

Accuracy Class : Class 1

Display : LCD Display

Standard : IEC62052-11/IEC62053-21

Contact Now

ADL 200

Functions

Single phase active kWh, 3 months historical energy data frozen storage;
Measuring electrical parameters such as voltage, current, apparent power, power factor, frequency, active power, reactive power, etc.;
LCD display;
Communication protocol: MODBUS-RTU, Communication interface: RS485;
Multiple tariffs can be set.

Parameters

Input voltage	Reference voltage	AC220V
	Reference frequency	50Hz
	Power consumption	<10VA
Input current	Basic current	10A
	Maximum current	80A
	Starting current	4‰lb
	Consumption	<4VA
Measurement performance	Accuracy of measuring	1 class
Measurement performance	Range of measuring	000000.00~99999999kWh
Clock accuracy		Error≤0.5s/d
Output	Pulse width	80±20ms
Output	Pulse constant	1000imp/kWh
Auto-reclosing brake	Interface	RS485(A+,B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU

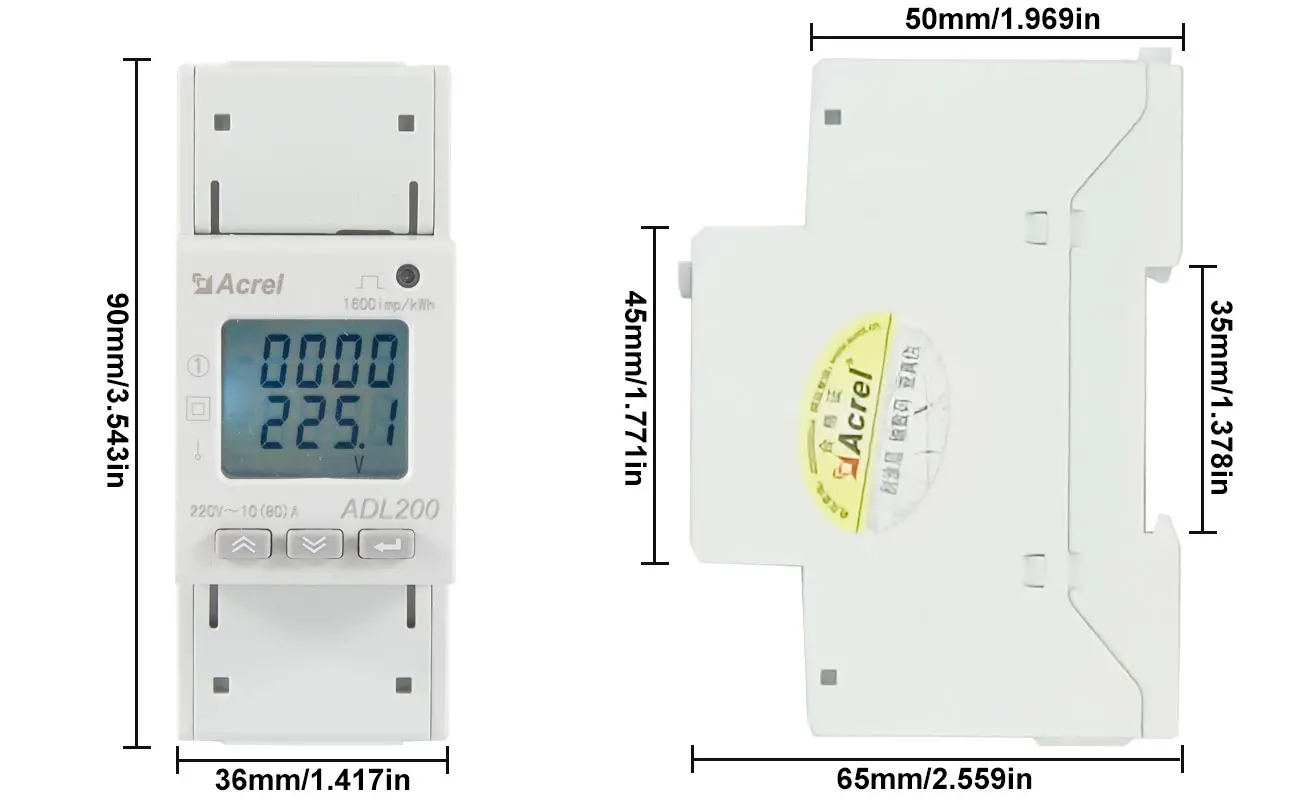

	Length×Width×Height	90mm×36mm×65mm
Strong current terminal Torque	<1.8Nm
